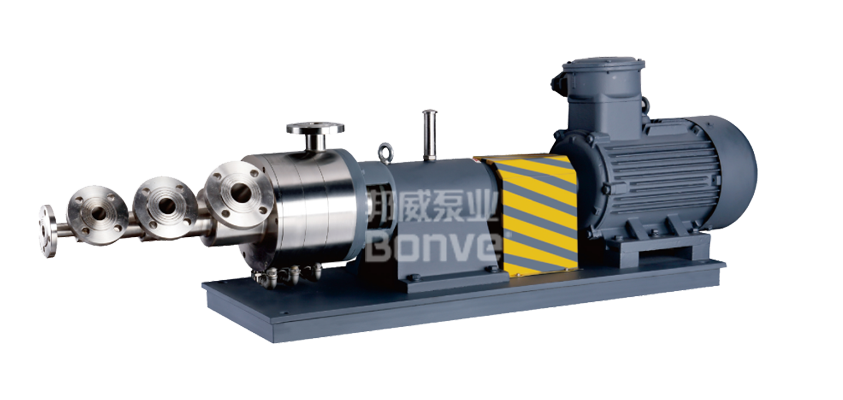

Bonve FHC Homogeneous Mixing Pump

Product Overview

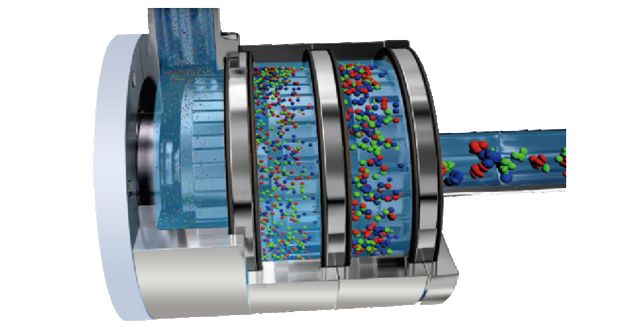

FHC homogenizing mixing pump consists of multi-tube mixing head and mixing pump, the mixing pump consists of 2-5 layers of rotor and stator, each layer of rotor and stator gear disk from coarse to fine, so that the original groups of different components of the material according to the proportion of the requirements of the instantaneous mixing and homogenization. The product is widely used in the production process requires a variety of materials for mixing and homogenization as well as chemical process technology in the neutralization of mixing. The use of the mixing equipment, so that the original traditional production process is further simplified, the production efficiency is greatly improved, mixed product quality improved significantly.

Overcurrent material

SS304/SS316/SS316L/Other

Connection Method

Flange/Screw-on/Clamp/Other

Technical Parameters

Model	Capacity	Pressure	Power	RPM
Model	m³/H	Mpa	kW	R/min
FHC10-185	1-3	0.1-1.6	2.2-4	260-1400
FHC20-185	3-6	0.1-1.6	3-5.5	260-1400
FHC10-200	5-10	0.1-1.6	3-7.5	260-1400
FHC20-200	10-15	0.1-1.6	4-11	260-1400
FHC15-260	15-20	0.1-1.6	5.5-15	260-1400
FHC25-260	20-30	0.1-1.6	7.5-18.5	260-1400
FHC15-300	40-50	0.1-1.6	11-30	260-1400
FHC30-300	50-80	0.1-1.6	15-45	260-1400
FHC15-360	80-120	0.1-1.6	22-55	260-1400
FHC30-360	120-160	0.1-1.6	30-75	260-1400
FHC15-400	160-220	0.1-1.6	55-90	260-1400
FHC30-400	220-250	0.1-1.6	75-110	260-1400
FHC15-460	260-320	0.1-1.6	90-132	260-1400
FHC30-460	320-350	0.1-1.6	110-160	260-1400

Product Features

Homogenizing and emulsifying pump is a high-efficiency product integrating mixing, dispersing, crushing, dissolving, fine, depolymerizing, homogenizing and emulsifying.

Mixing, dispersing, homogenizing, emulsifying without dead angle, high efficiency and energy saving. Easy to assemble and disassemble for cleaning, reliable performance and long service life.

Materials can be processed in cycles or all at once.

The integrated design of the toothed discs makes it possible to replace them with each other according to different treatment effects and requirements.

Pump body and rotor stator, according to the user's material characteristics can be reasonably selected to achieve the best results.

Mechanical seal adopts double face balanced mechanical seal, single face balanced mechanical seal, and assembled mechanical seal, and according to the user's needs can be equipped with cooling system.

In order to meet the needs of the majority of users around the world, the homogenizing and emulsifying pumps of Bonneville Pumps have more than 100 kinds of tooth shapes. In order to achieve the requirements of mixing, homogenizing, refining and emulsifying various materials.
