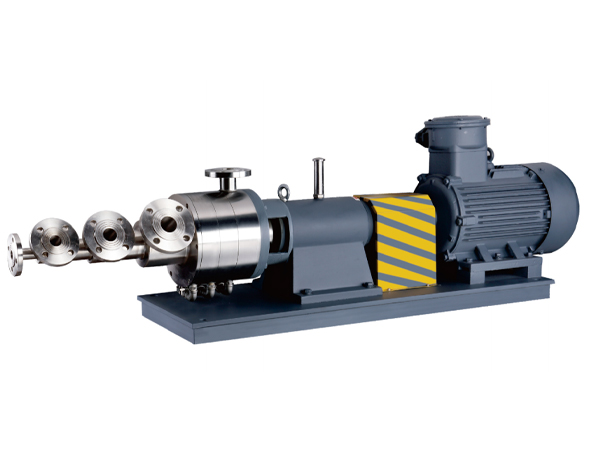

FHC Homogeneous Mixing Pump is composed of a multi-tube mixing head and a mixing pump. The mixing pump consists of 2-5 layers of rotors and stators, with the gear discs of each layer of rotors and stators ranging from coarse to fine. This enables instantaneous mixing and homogenization of raw materials with different components according to proportional requirements. The product is widely used in production processes requiring mixing and homogenization of multiple materials, as well as neutralization mixing in chemical process technology. After using this mixing equipment, the original traditional production process is further simplified, production efficiency is significantly improved, and the quality of the mixed product is obviously enhanced.

（FCH HOMOGENIZER MIXING PUMP）

The core innovation of the FHC Homogeneous Mixing Pump lies in the synergistic effect of the multi-tube mixing head and the multi-layer rotor-stator system. The mixing pump is equipped with 2-5 layers of precisely matched rotor-stator components, and the tooth disc structure presents a gradual evolution:

Coarse tooth disc: Powerfully tears apart material aggregates

Intermediate tooth disc: Forms high-intensity turbulence to eliminate segregation

Fine tooth disc: Achieves deep homogenization

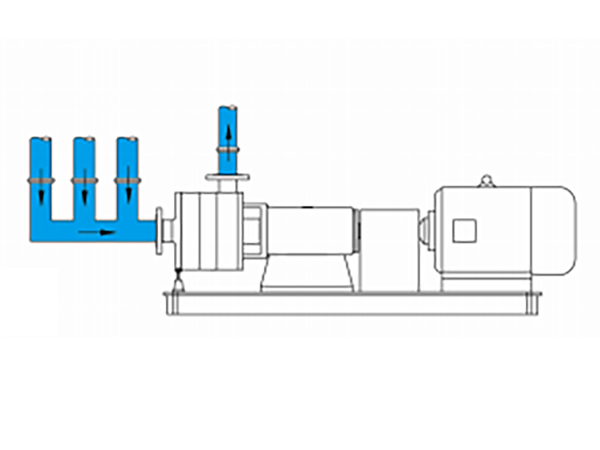

Core Value of Multi-tube Mixing Head

The multi-channel design enables deep mixing of heterogeneous fluids such as acids, alkalis, and solvents within milliseconds, particularly suitable for:

Instantaneous neutralization reactions in chemical processes

Formulation of nanomaterials with high compatibility requirements

Treatment of high-solid-content slurries prone to sedimentation

Three Advantages of Reconstructing Production Processes

(FHC Homogeneous Mixing Pump Process Technology of Bonve Pump Industry)

Minimalist Revolution of Process Chain

Take the acidolysis and neutralization of titanium dioxide as an example:

Traditional process: Premixing → Neutralization → Aging → Pressure filtration (multiple equipment in series)

FHC process: Raw materials → Multi-tube mixing pump → Finished product (single-machine integration)

Eliminates losses from multi-stage equipment connection and shortens the process flow.

Substance of Quality Improvement

In the pharmaceutical field: Significantly improves the stability of reagent adjuvants

In new energy applications: Ensures the uniformity of lithium battery slurries

In food processing: Prolongs the shelf life of protein beverages

(Technical Parameters of FHC Homogeneous Mixing Pump by Bonve Pump Industry)

Elastic Production Adaptability

Small-scale trial production: Adapts to low-flow requirements (e.g., FHC10-185 type)

Large-scale continuous production: Meets high-flow scenarios (e.g., FHC30-460 type)

Intelligent pressure adaptation: The entire series supports wide-pressure-range operation

Key Operation Specifications

Ensure sufficient filling when processing crystalline materials

Strictly implement medium pre-lubrication before starting

This equipment is becoming a strategic choice to replace stirred tanks and static mixers, and its modular design supports the upgrading and transformation of old production lines.
